PREXA F open pneumatic press
Open pneumatic press with a perforated tank and automatic pressing cycles.

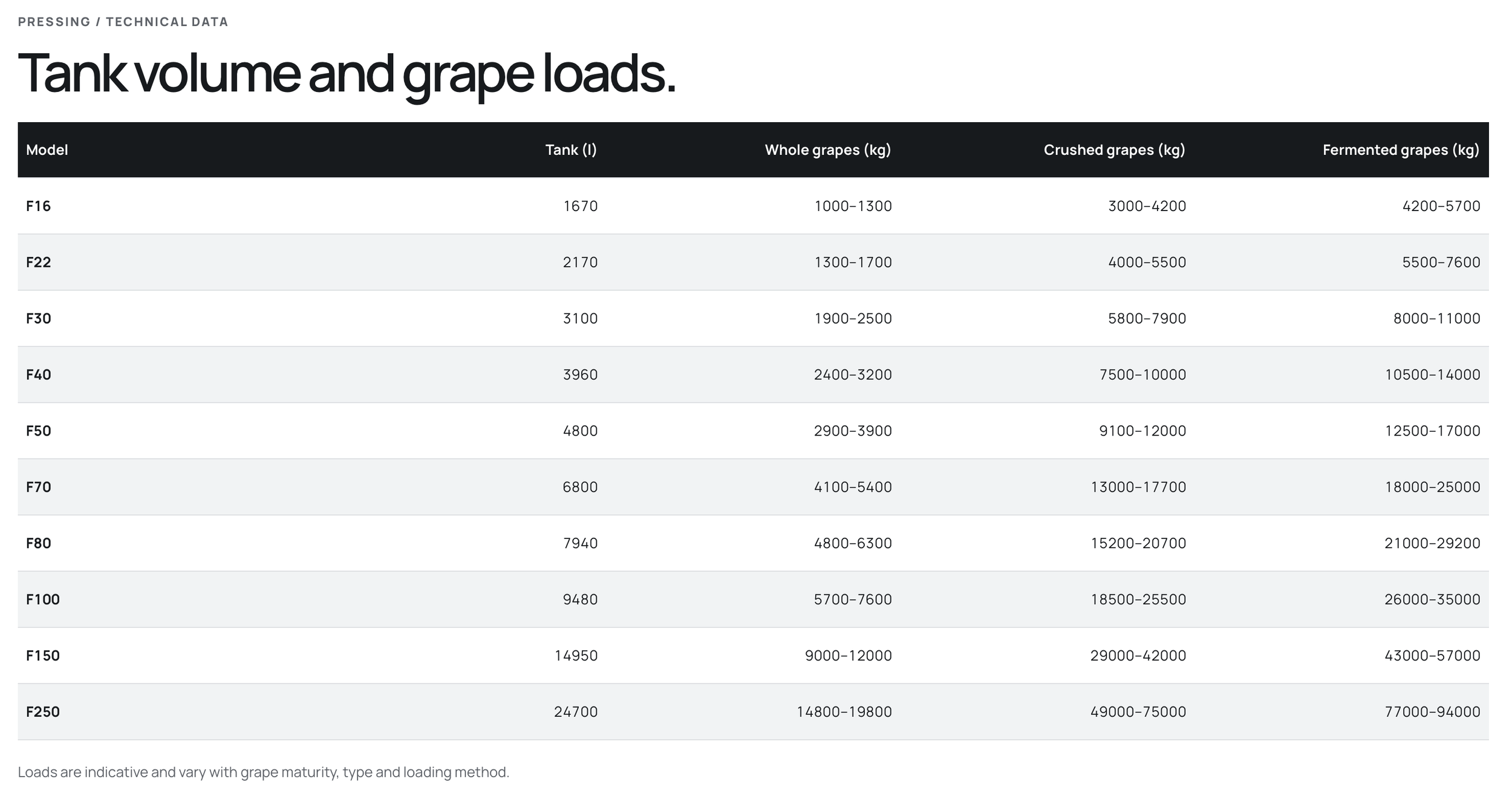

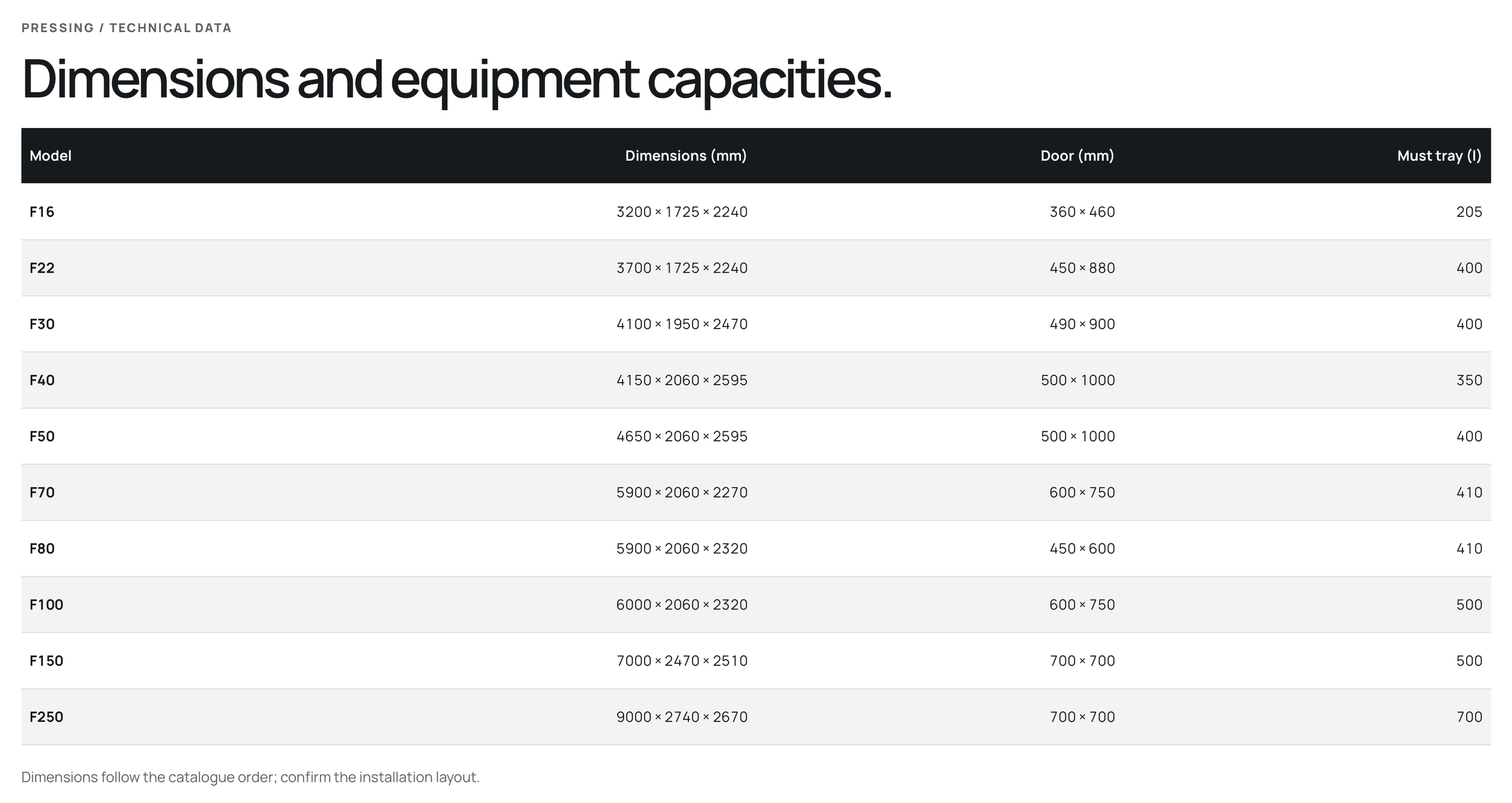

Technical details.
Discuss specifications and the right configuration for your application with the Bev-Tech team.
The perforated tank provides a large drainage area for efficient extraction.
Large loading and unloading door with manual opening.
Structure made entirely of AISI 304 stainless steel.
The “Easy Way” system allows quick, straightforward membrane replacement in the event of failure.
An intuitive user interface uses a color touchscreen.
The “Champagne” sequential pressing program includes a preloaded recipe based on the French production specifications.
Pressing and control.
The membrane presses the grapes against the drainage surface, limiting mechanical damage to seeds and stalks. Touch-screen control supports automatic PLC cycles and manual operation, with a preloaded Crémant sequence, 36 customisable pressing programmes and automatic pomace discharge. Safety interlocks prevent operation with protective covers open.
Open tank, accessible construction.
The perforated tank provides an extensive drainage surface. A bent-sheet support frame and external must-tray folds facilitate cleaning. Opening protection covers with safety sensors, an accessible motor compartment and a visible pressure gauge support daily operation and maintenance. The Easy Way system simplifies membrane replacement.
Available options.
Must-tray level controller for automatic or manual pump operation and overload control.
Pneumatic axial loading valve, pedestal-mounted control panel and raised support legs.
Automatic washing, larger loading door and whole-grape loading hopper.
Motorised wheels, remote assistance and polyurethane membrane.
