PREXA N VORTEX closed press

Closed pneumatic press with the patented VORTEX system for pressing under an inert nitrogen atmosphere and recovering and filtering the inert gas.

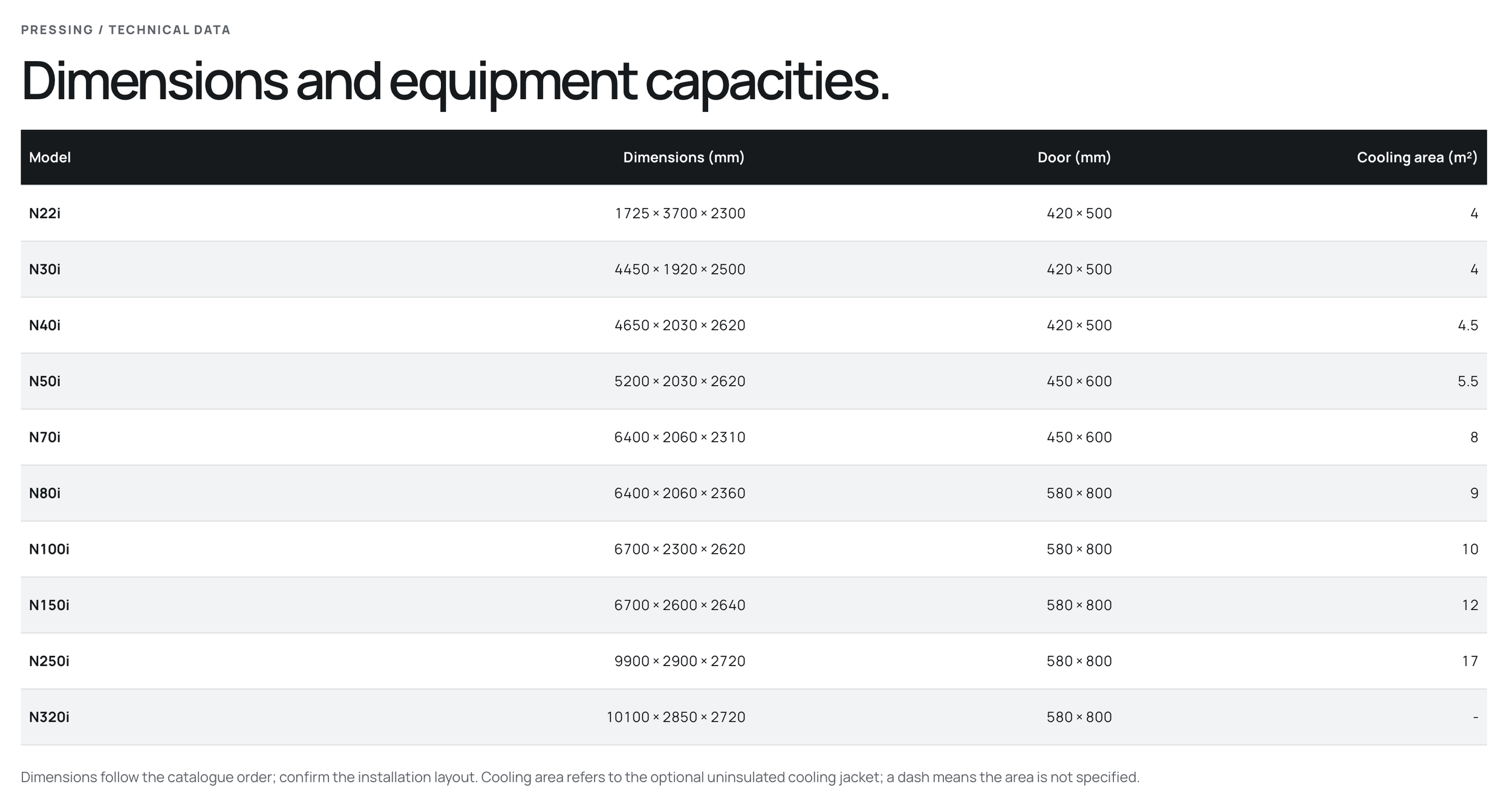

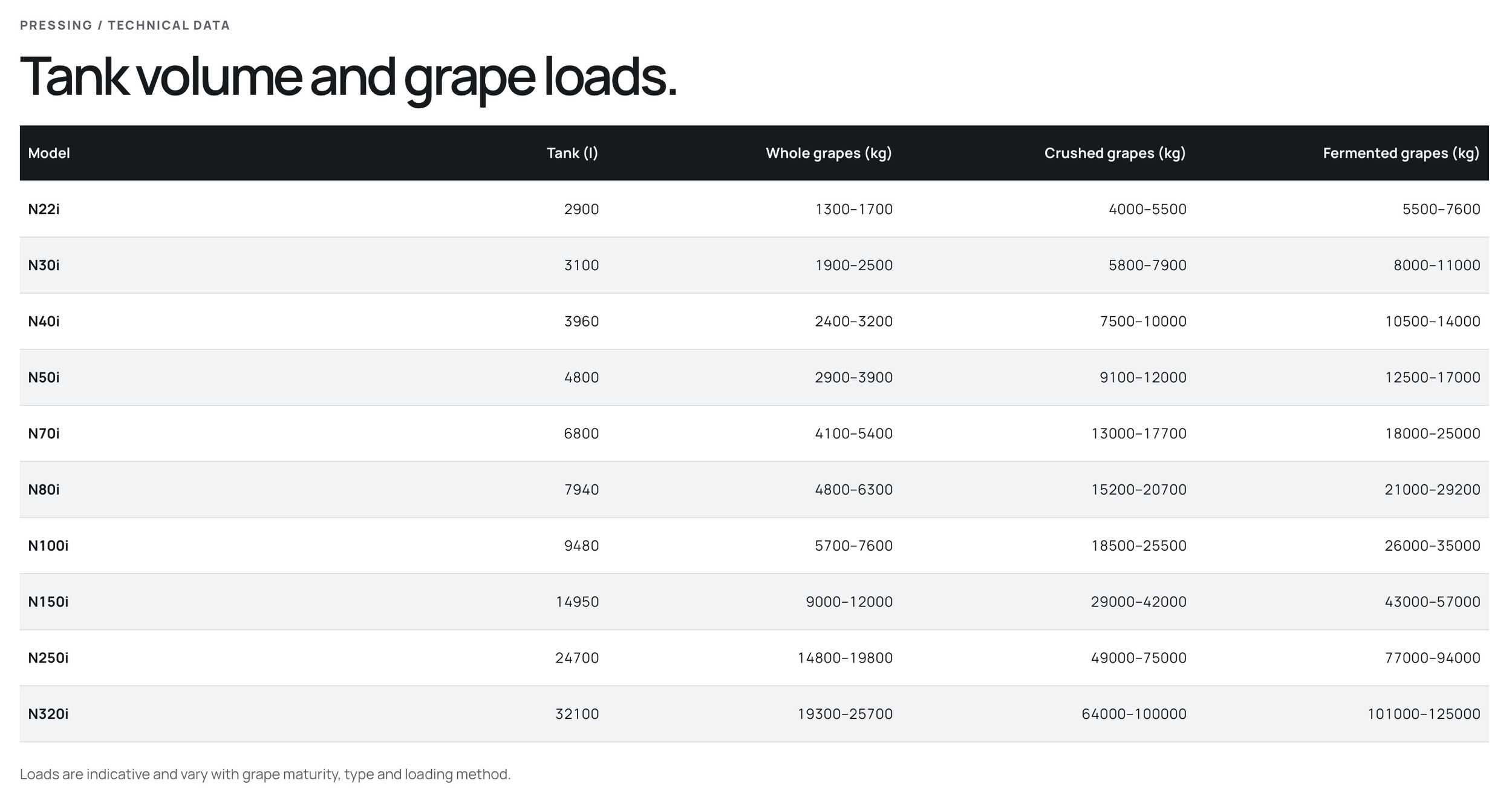

Technical details.

Discuss specifications and the right configuration for your application with the Bev-Tech team.

The patented VORTEX system allows pressing under an inert nitrogen atmosphere with high-quality must extraction. Recovery and filtration of the inert gas are designed to prevent contamination of the gas if the processed product ferments.

Juice-extraction pump control can be automatic, using a level controller in the juice collection tray, or manual.

Juice-extraction pump with rubber impeller.

Axial loading with a pneumatic valve.

Drainage channels with a large drainage surface support efficient extraction.

A large, manually opened, fully airtight loading/unloading door enables efficient filling.

The structure is made entirely from AISI 304 stainless steel.

Easy-to-use interface with a colour touch-screen display.

Sequential “Champagne” pressing programme with a preloaded recipe based on the French production specifications.

Pressing and control.

The membrane presses the grapes against the drainage surface, limiting mechanical damage to seeds and stalks. Touch-screen control supports automatic PLC cycles and manual operation, with a preloaded Crémant sequence, 36 customisable pressing programmes and automatic pomace discharge. Safety interlocks prevent operation with protective covers open.

Nitrogen protection with VORTEX.

The patented VORTEX system combines a central drainage arrangement with pressing under nitrogen and recovery and filtration of the inert gas. The operating cycle comprises loading, pressing, membrane decompression and pomace discharge.

  • Electronic must-level management and overload protection.

  • Pneumatic axial loading valve and onboard impeller pump.

  • Automatic recirculating-water washing.

  • Automatic tank inerting with gas discharge control.

Available options.

  • Remote control panel, support extensions and must selection.

  • Larger or double pneumatic airtight door, whole-grape loading hopper and motorised wheels.

  • Inert-gas system for carbonic maceration and must-tray inerting.

  • Uninsulated cooling jacket, remote assistance and polyurethane membrane.
