Z conical-bottom tanks
Wine and food-liquid storage and fermentation tanks with centered or offset conical bottoms.
Technical details.
Discuss specifications and the right configuration for your application with the Cellar Technician team.
Suitable for storing and fermenting wine or other liquid food products.
Made of AISI 304 (W.Nr.1.4301/IIId) or AISI 316 (W.Nr.1.4404/IIId) stainless steel, with sheet thickness selected to ensure tank stability.
Automatic TIG welding in an inert atmosphere, followed by pickling and brushing of the welds. Carefully polished internal surfaces reduce residue accumulation and make cleaning easier.
Mounted on legs with adjustable feet and thick base plates. Alternatively, installed directly on a concrete slab without legs.
Tank dimensions, accessories and accessory positions are tailored to requirements.
Detailed technical drawings are submitted to the customer for approval before manufacture.

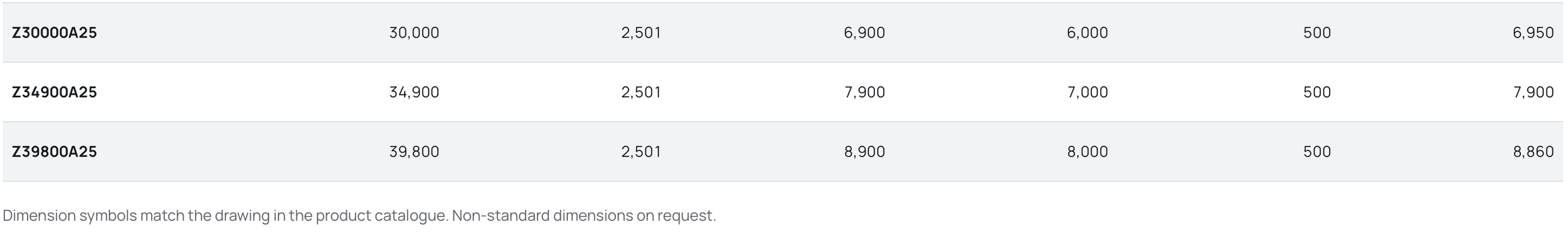

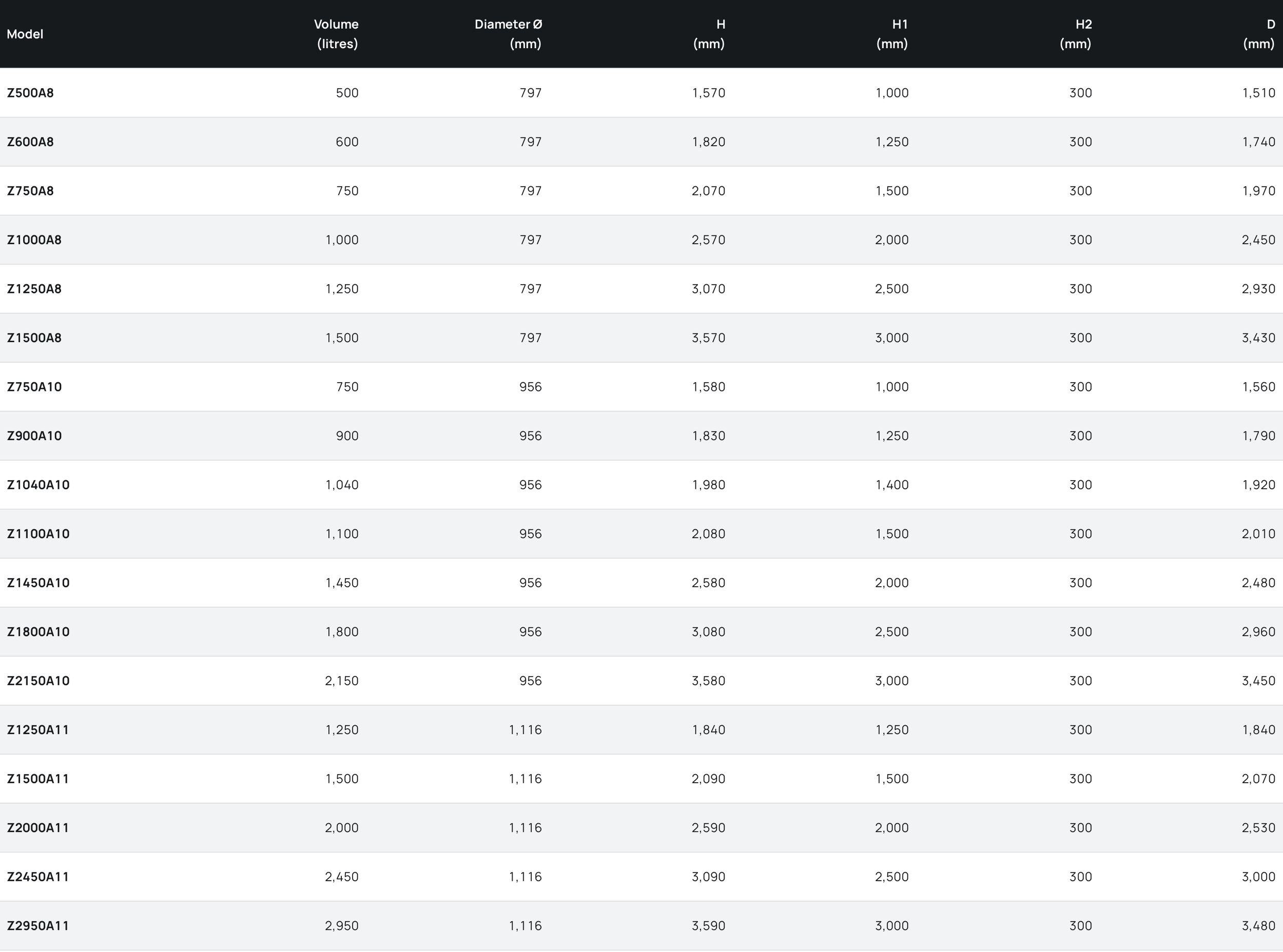

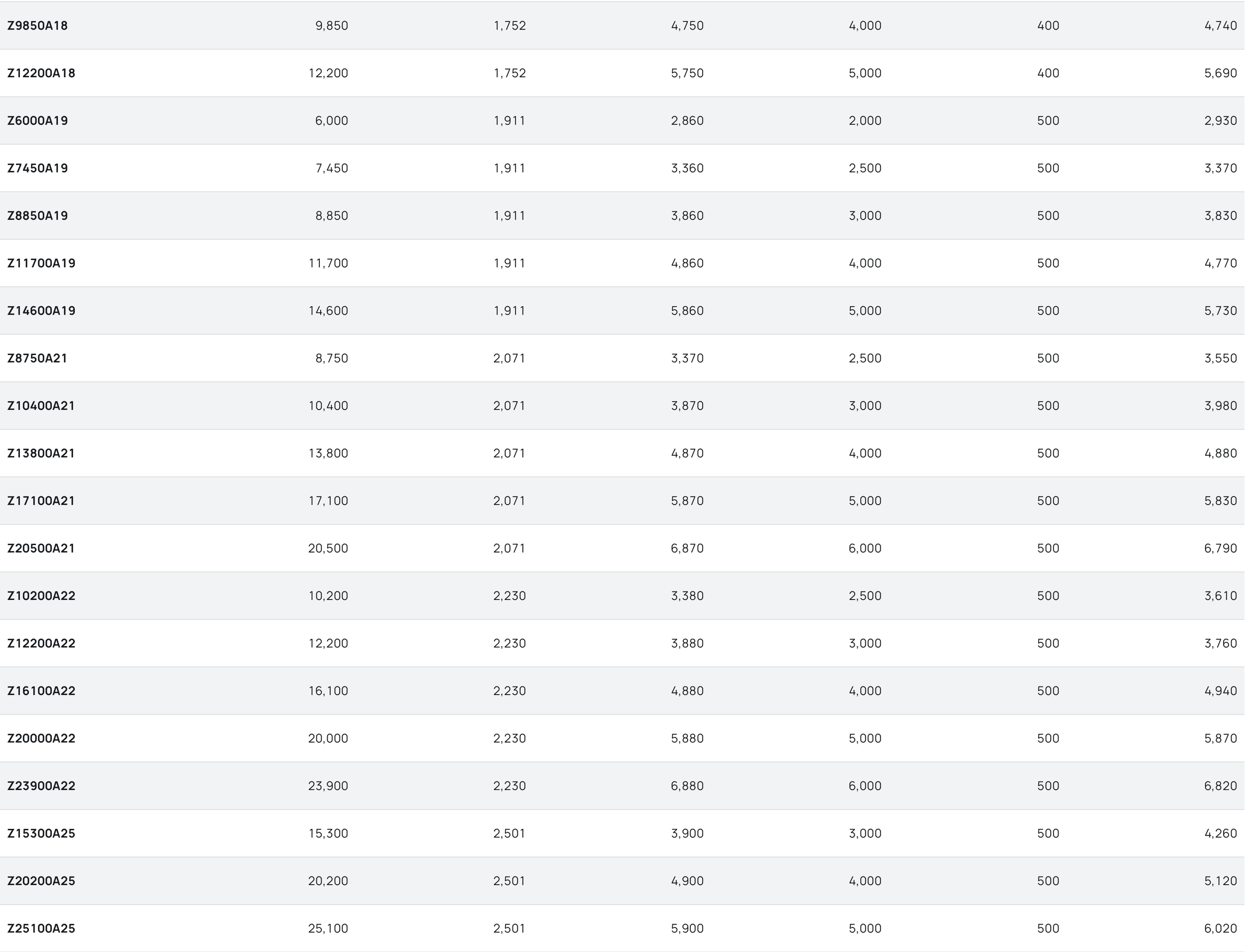

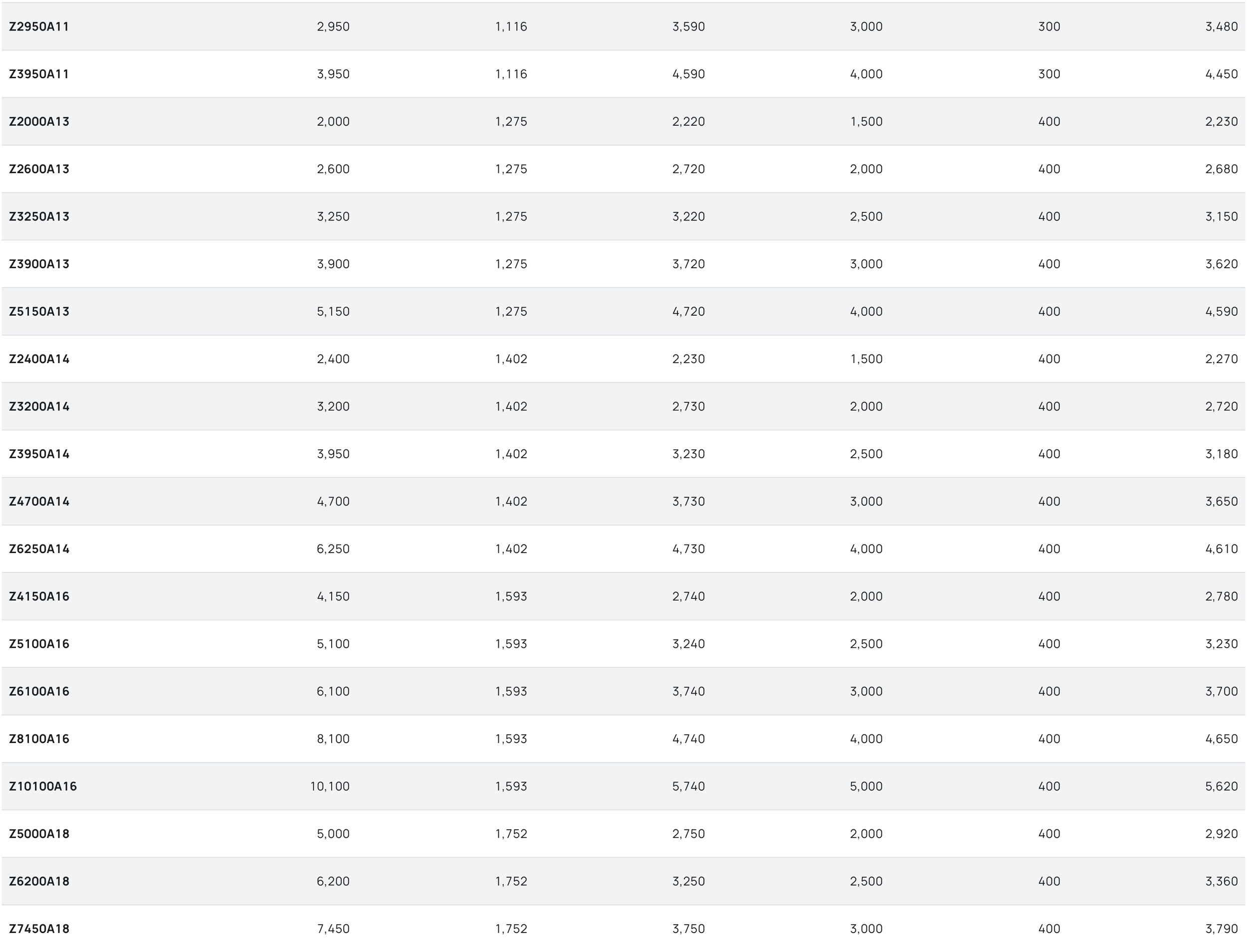

Z — dimensions and capacities.
