IZO insulated tanks
Insulated stainless steel tanks for tartrate stabilisation and the storage of wine or other liquid food products, with 60 mm polyurethane insulation.
Technical details.
Discuss specifications and the right configuration for your application with the Cellar Technician team.
Tanks suitable for tartrate stabilisation and for storing wine or other liquid food products.
Tanks are made from AISI 304 (W.Nr.1.4301/IIId) or AISI 316 (W.Nr.1.4404/IIId) stainless steel, with sheet thickness selected to ensure tank stability.
60 mm expanded polyurethane insulation with welded stainless steel cladding, rather than riveted cladding.
Automated TIG welding under an inert atmosphere, with pickled and brushed welds. Careful internal polishing reduces surface residue deposits and makes cleaning easier.
Mounted on legs with adjustable feet and thick base plates.
Tank dimensions, accessories and their positions are tailored to requirements.
Detailed technical drawings are submitted to the customer for approval before tank construction.
Conical-bottom tanks with a central or offset cone, mounted on legs and fully insulated.
IZO insulated tanks.

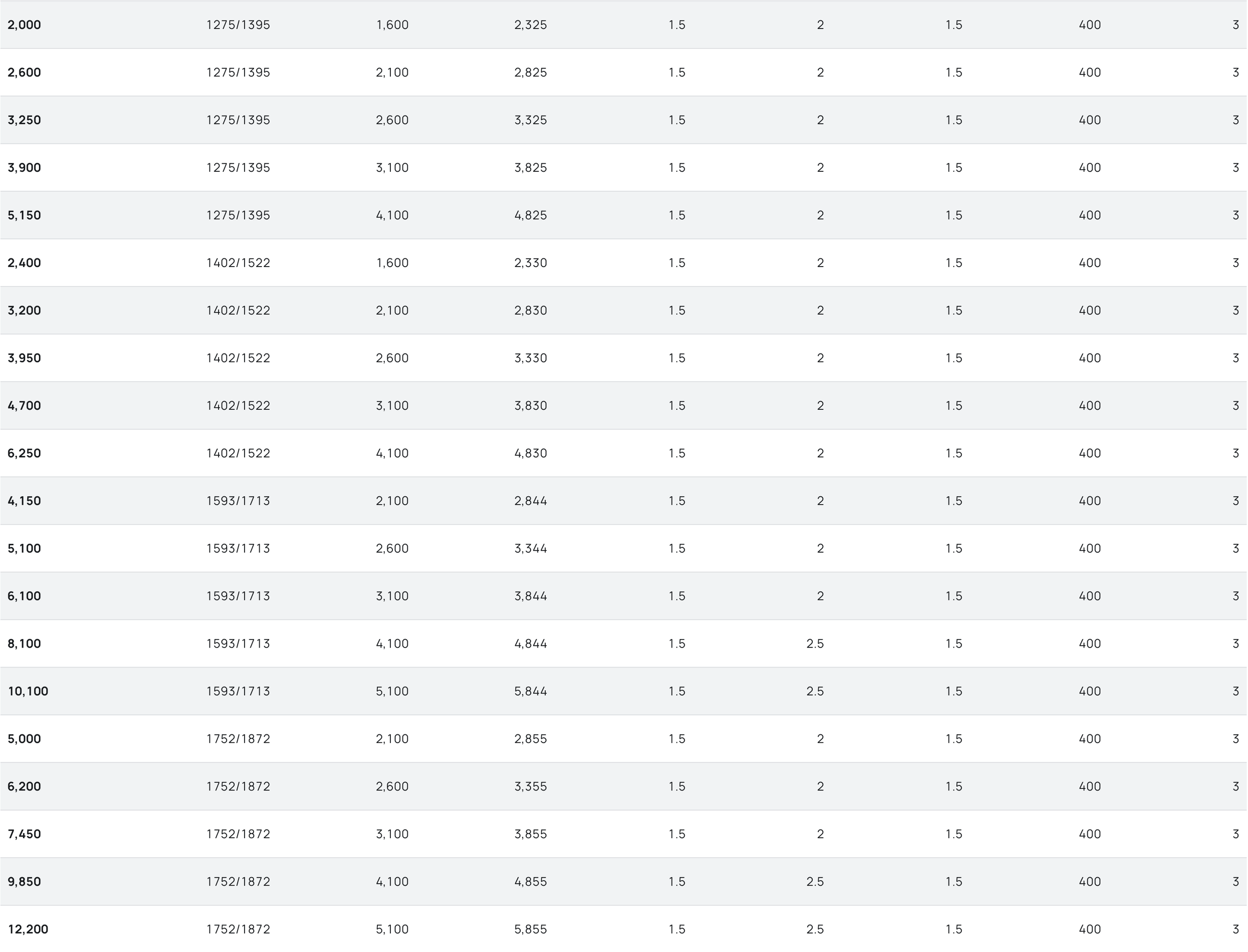

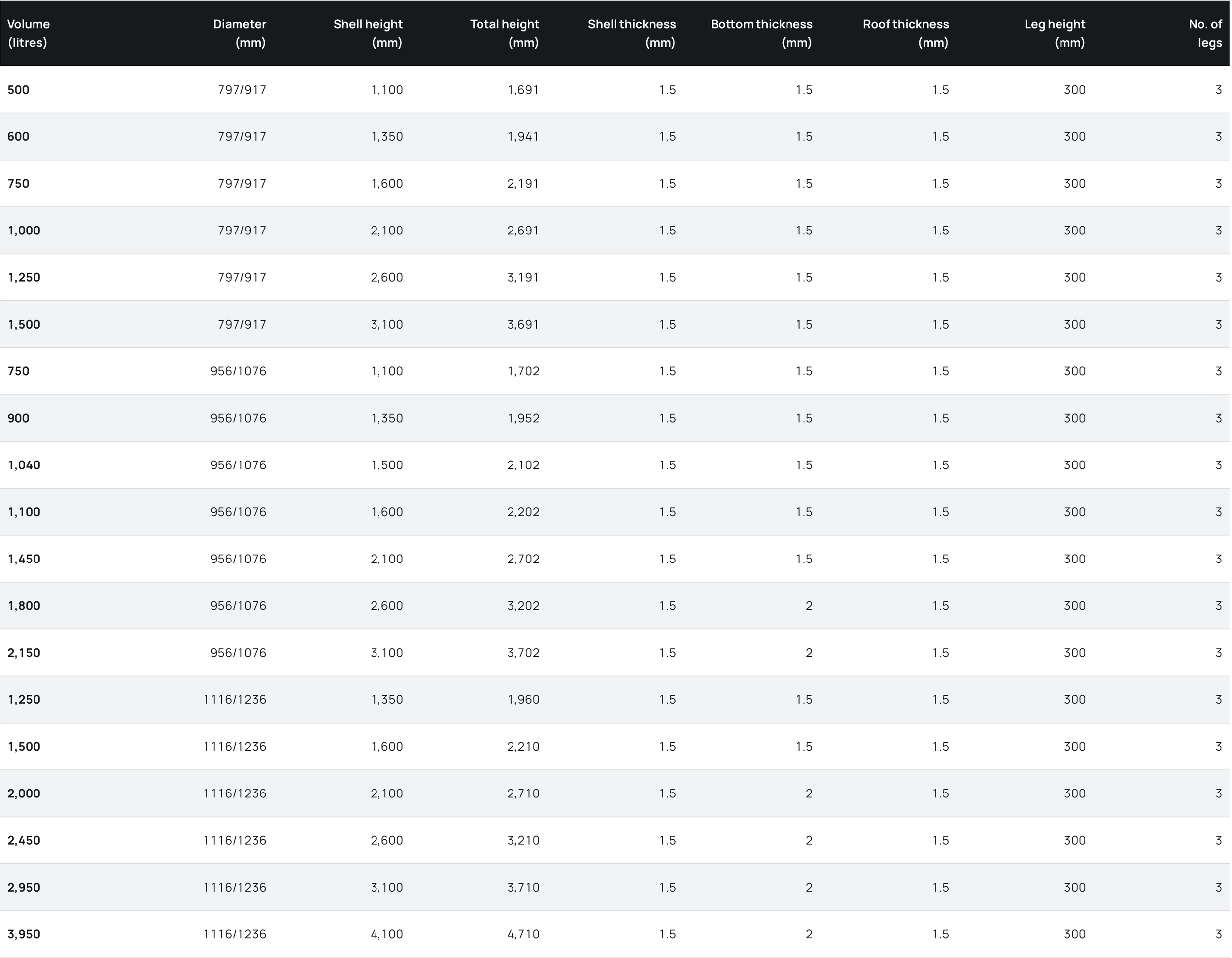

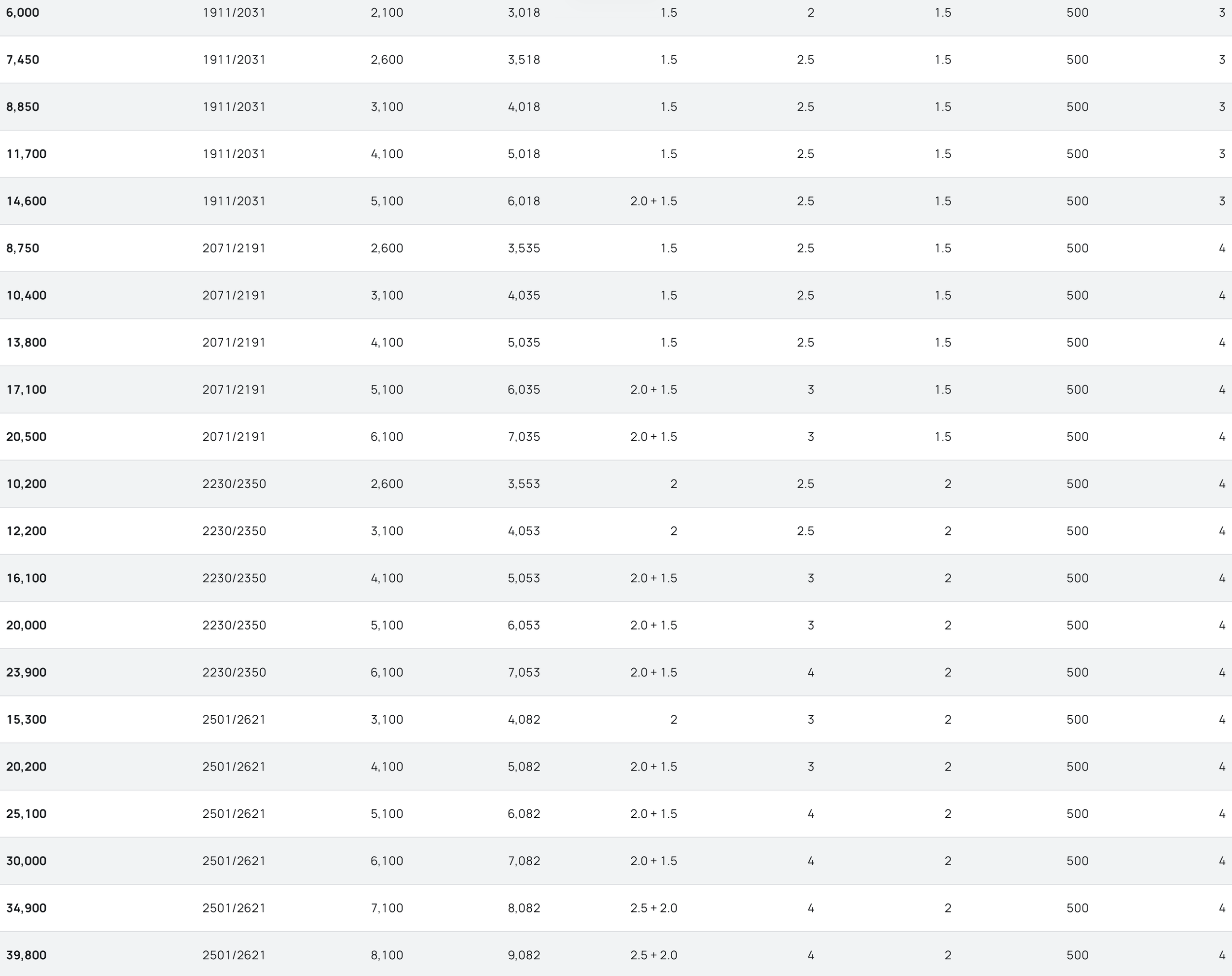

60 configurations from 500 to 39,800 litres, with an off-centre conical bottom and 60 mm polyurethane insulation.
