AV-AS progressing cavity pumps with hopper
Stainless steel hopper-fed pumps for gentle transfer of grapes, fermented pomace, wine and must.

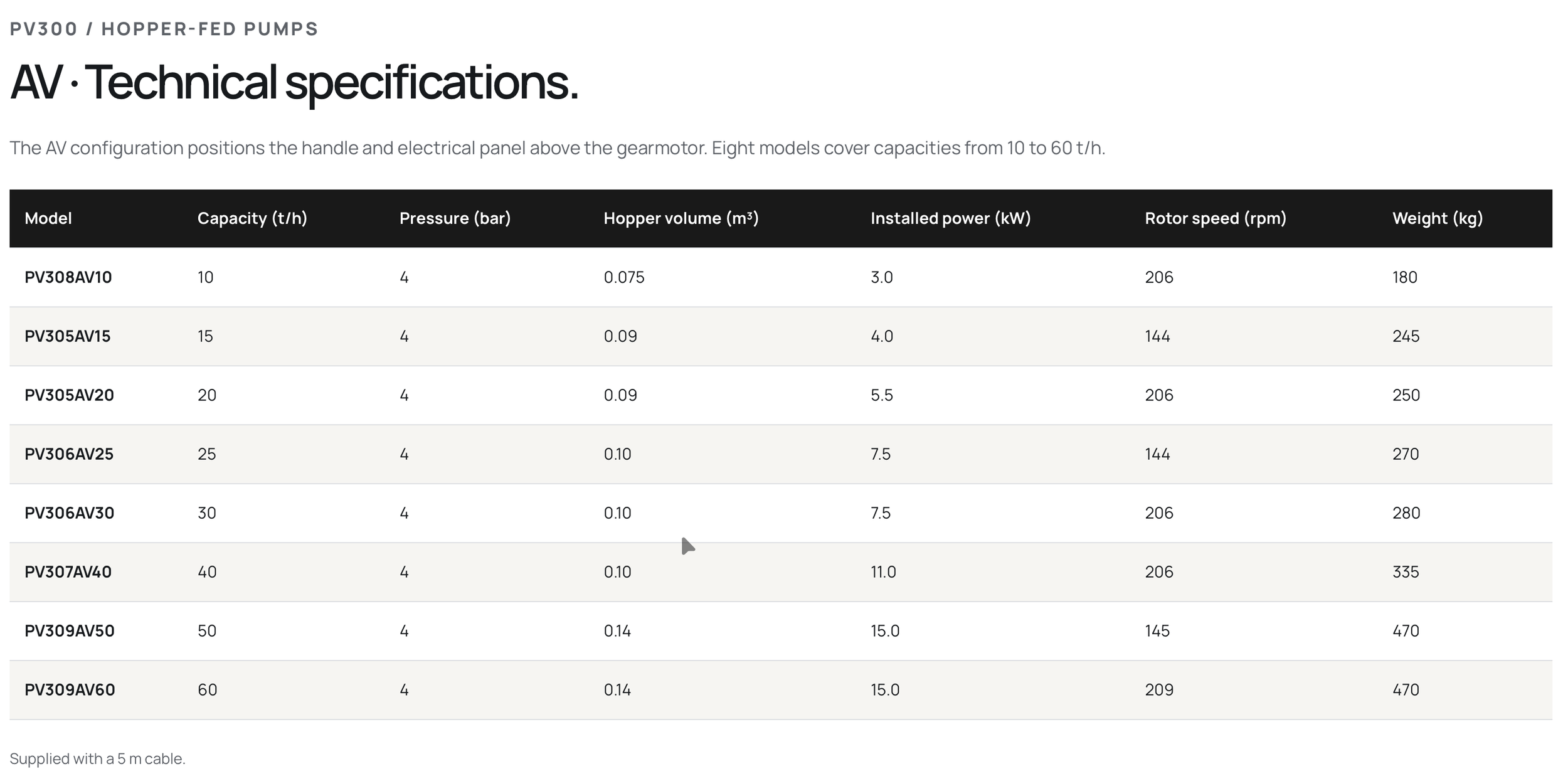

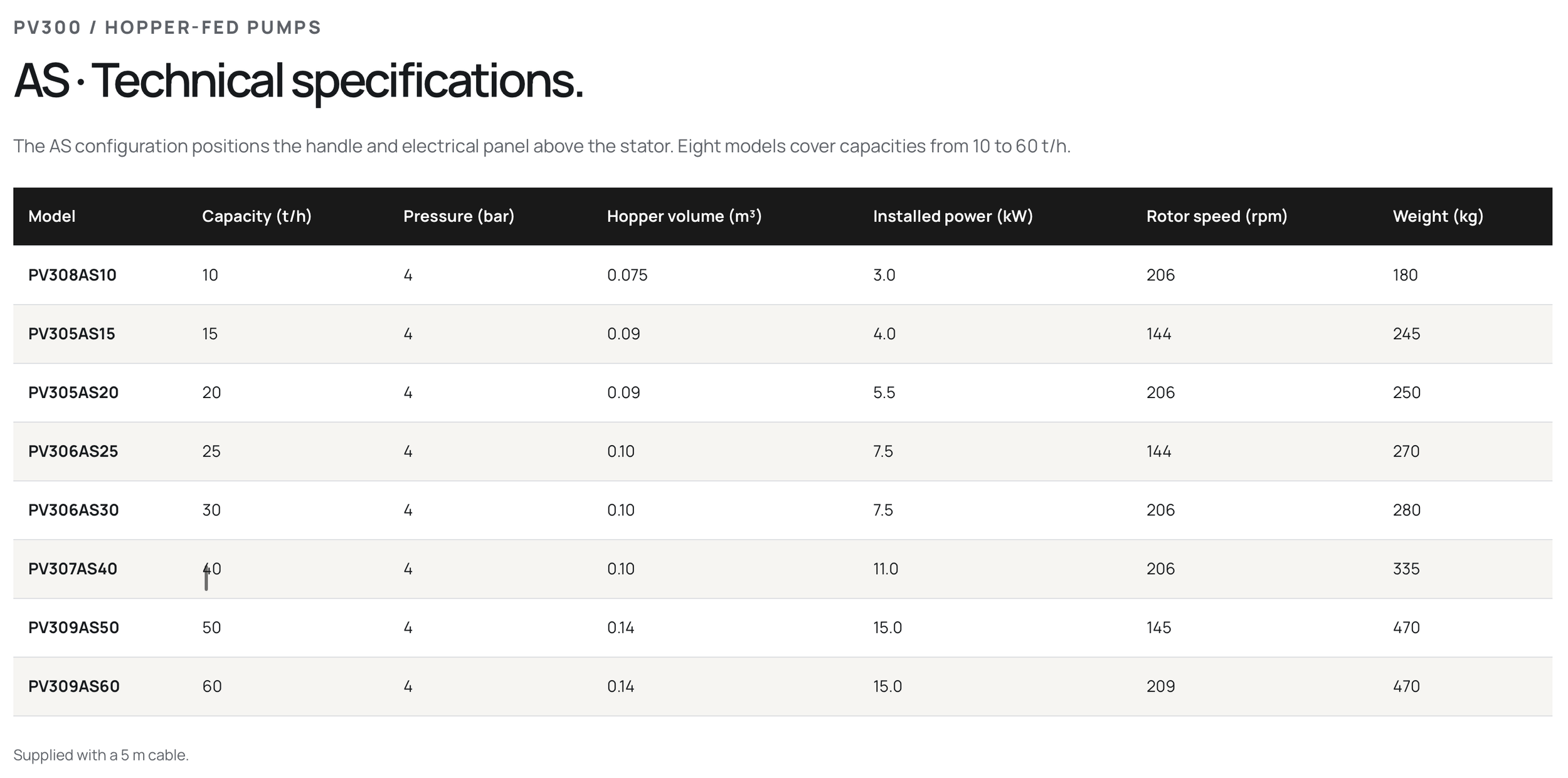

Technical details.
Discuss specifications and the right configuration for your application with the Bev-Tech team.

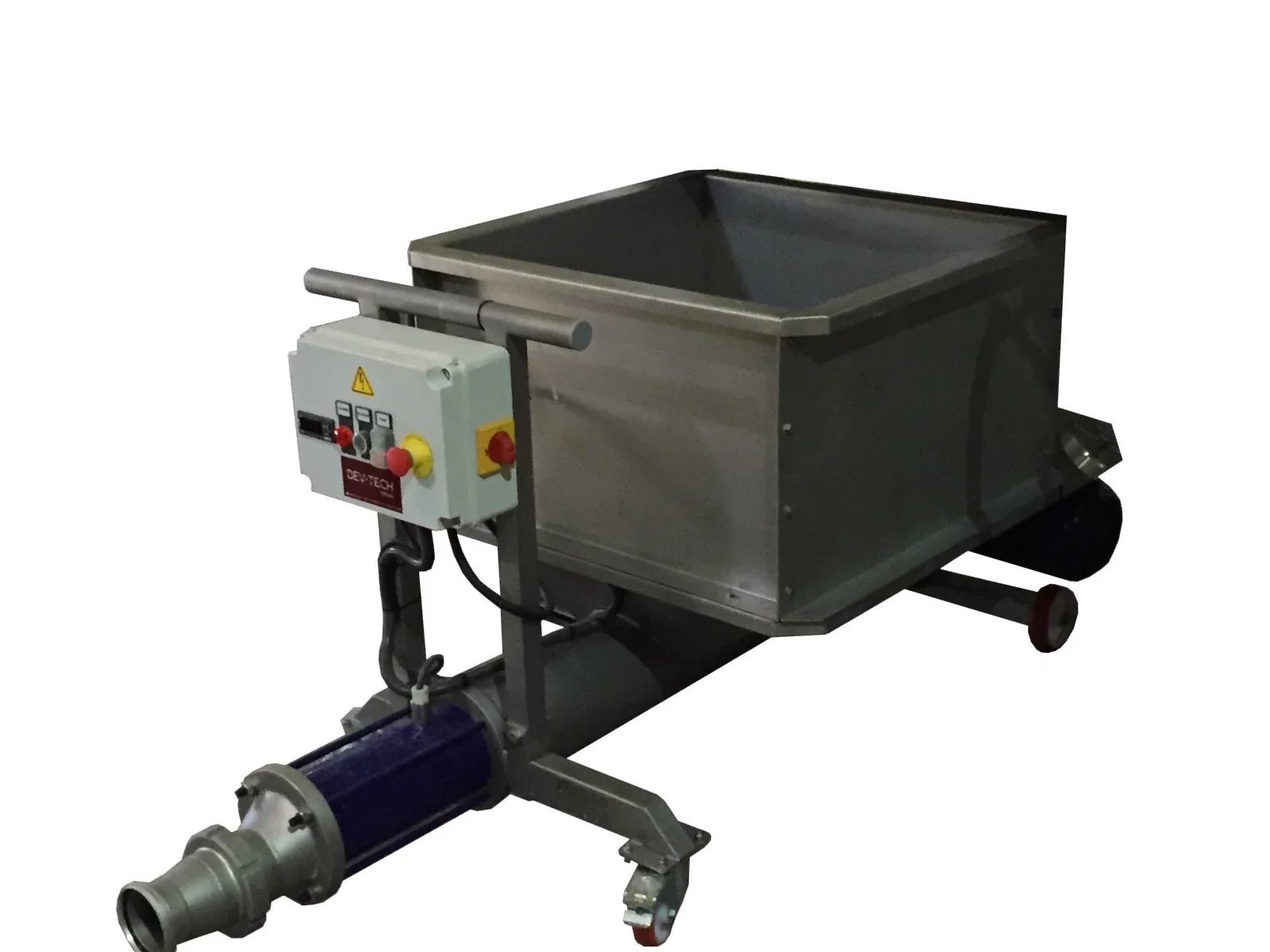

AISI 304 stainless steel pump on a wheeled trolley.
A stainless steel rotor and rubber stator are sized for gentle pumping at low speed, limiting product breakdown, especially with skins or fermented pomace.

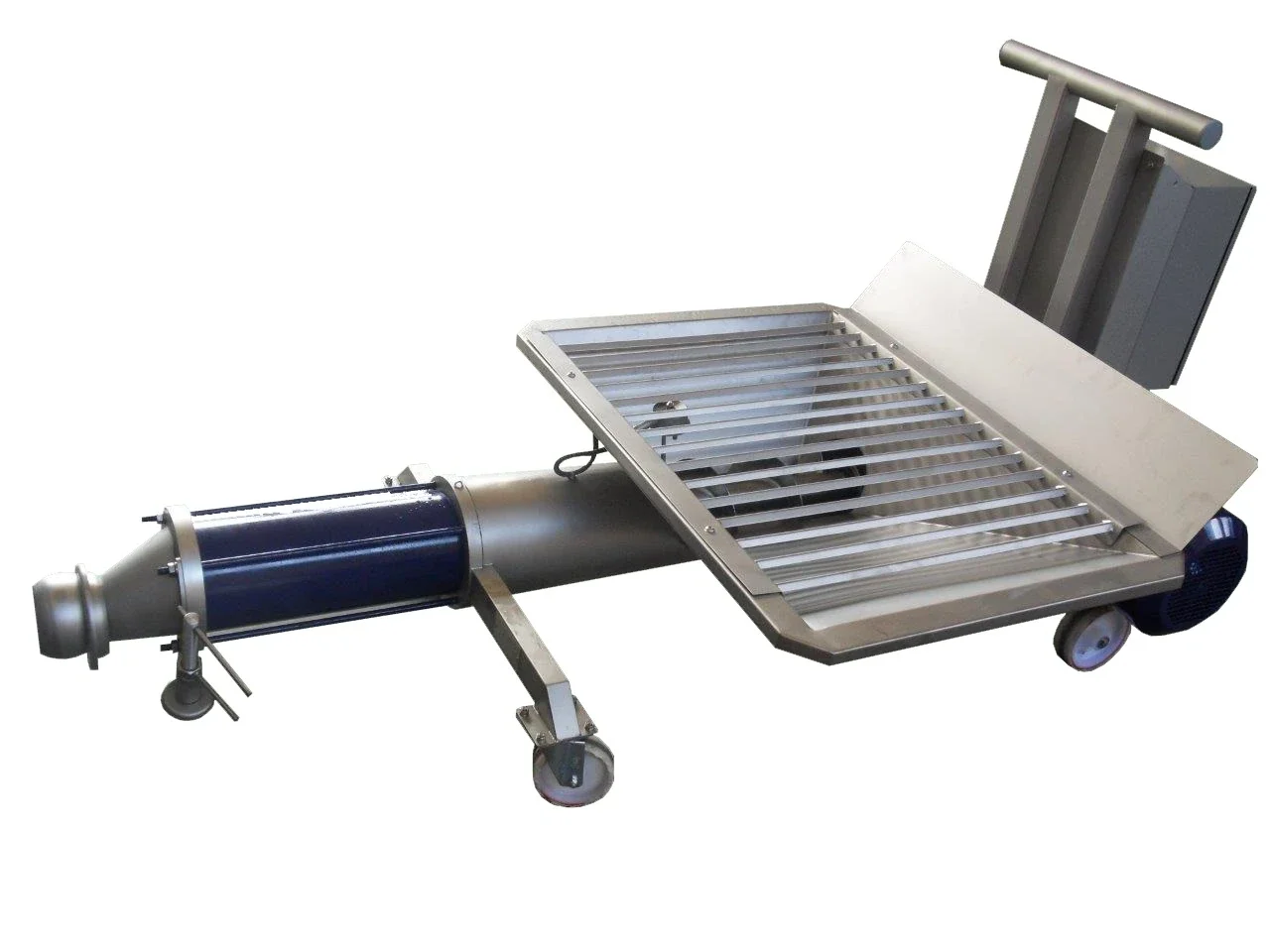

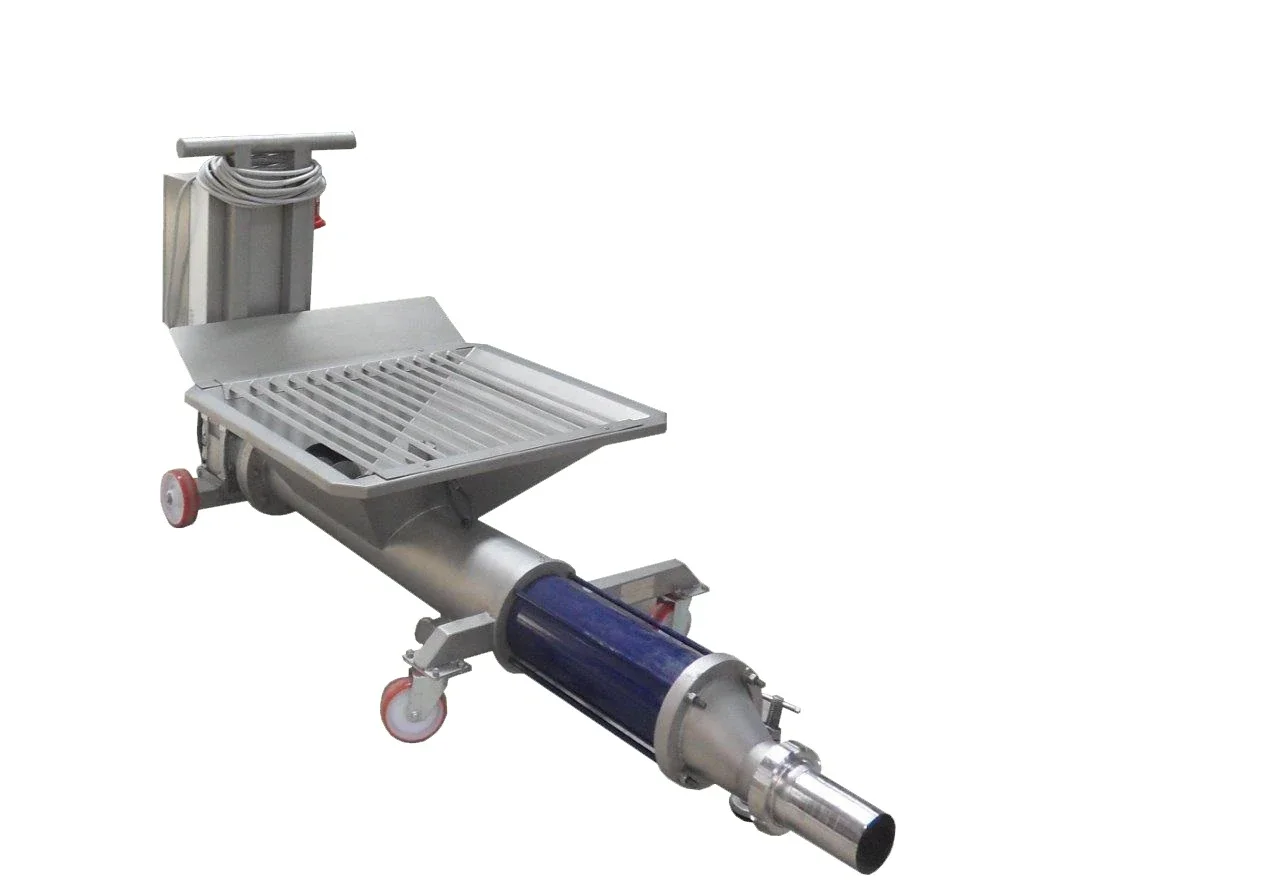

Large loading hopper with safety guards.
Motor drive with a mechanical gear reducer.
Suitable for transferring wine, must, whole grapes, destemmed grapes and fermented pomace.

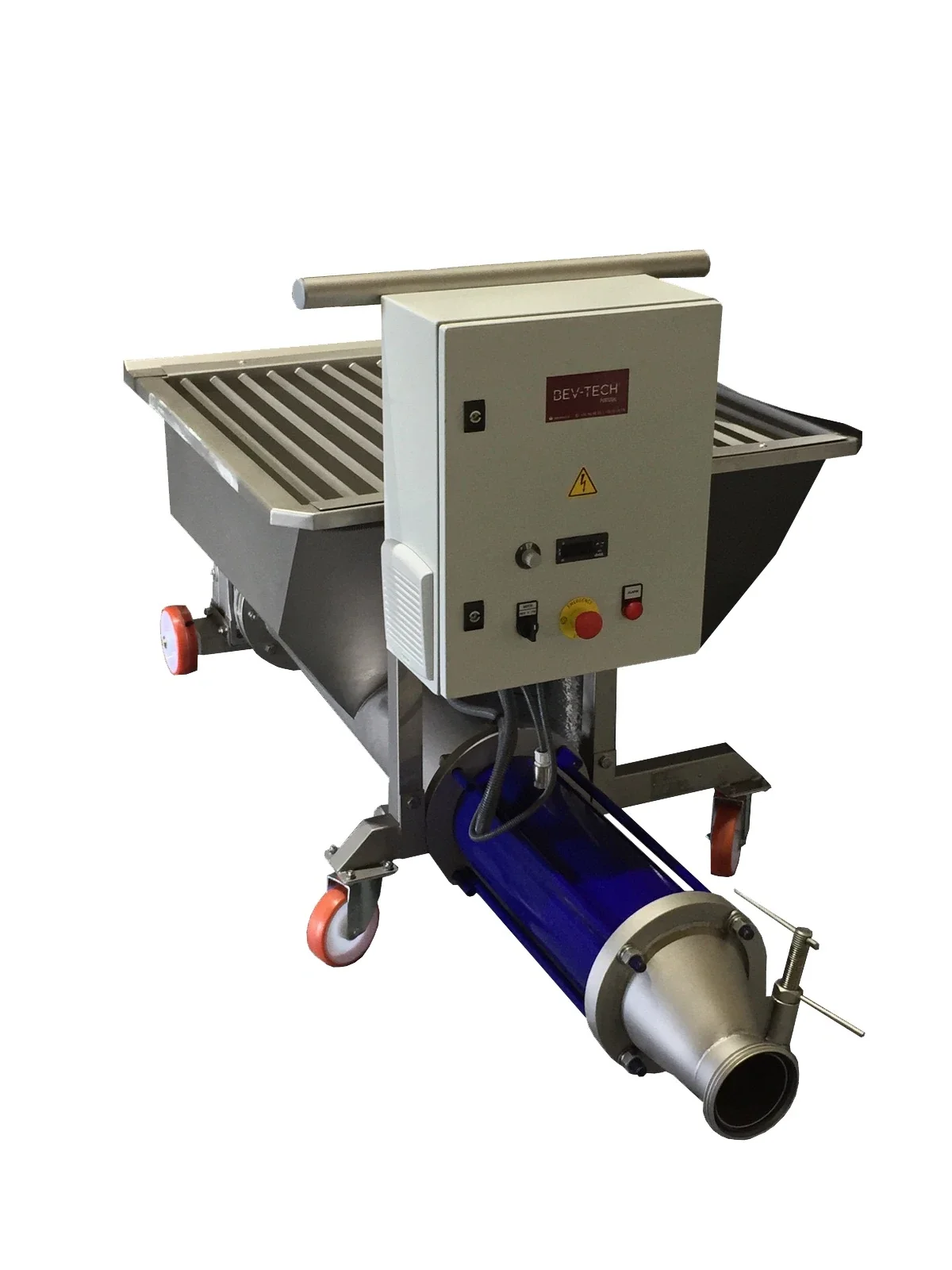

On the AV version, the handle and electrical panel are positioned above the gearmotor.
On the AS version, the handle and electrical panel are positioned above the stator.
CONTROL & ACCESSORIES
Available options.
Stator temperature control
Temperature monitoring with automatic pump stop.
Hopper level probes
Minimum and maximum product-level detection in the hopper.
Electronic speed control
Inverter options available for the AV and AS model families.
Larger hopper

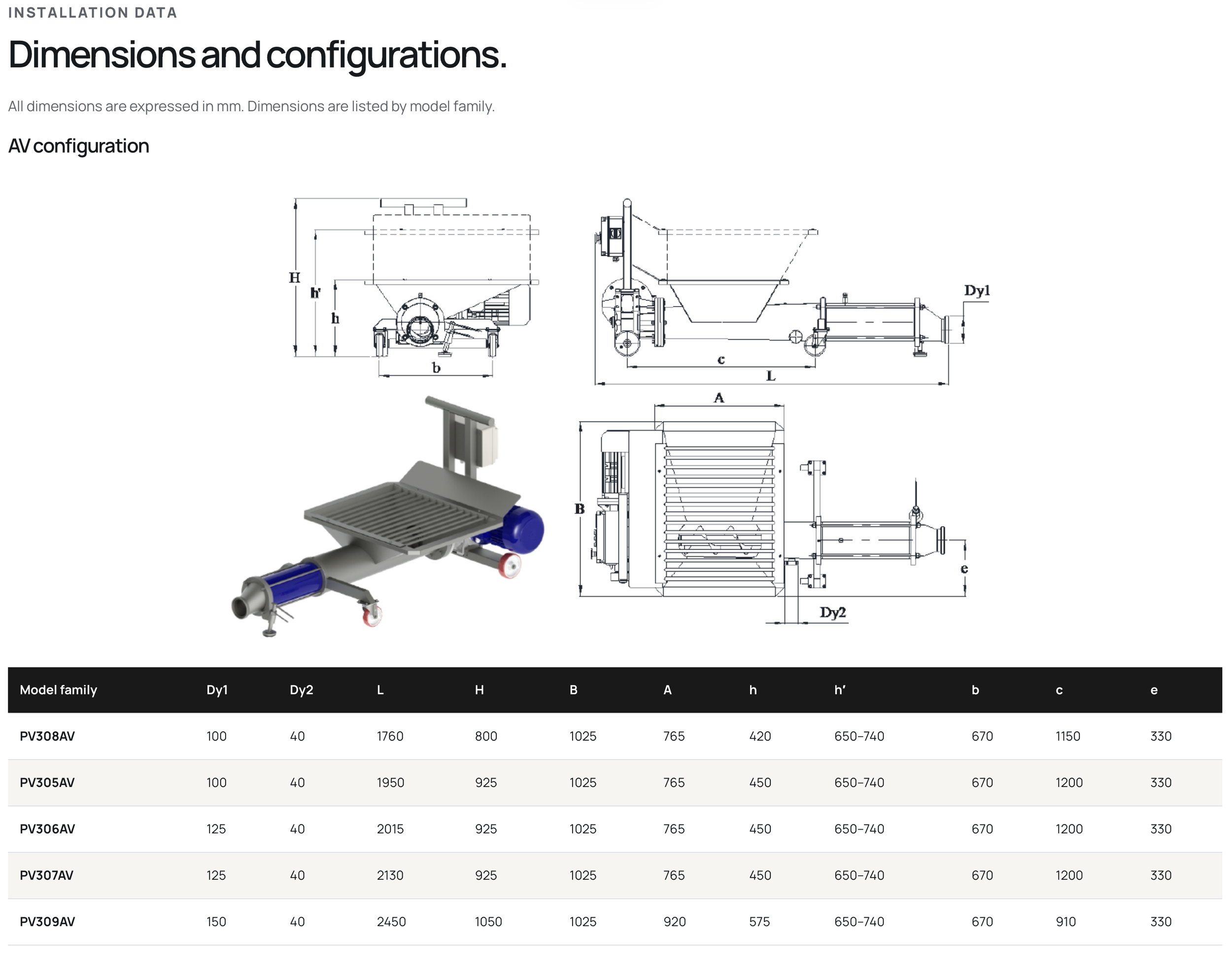

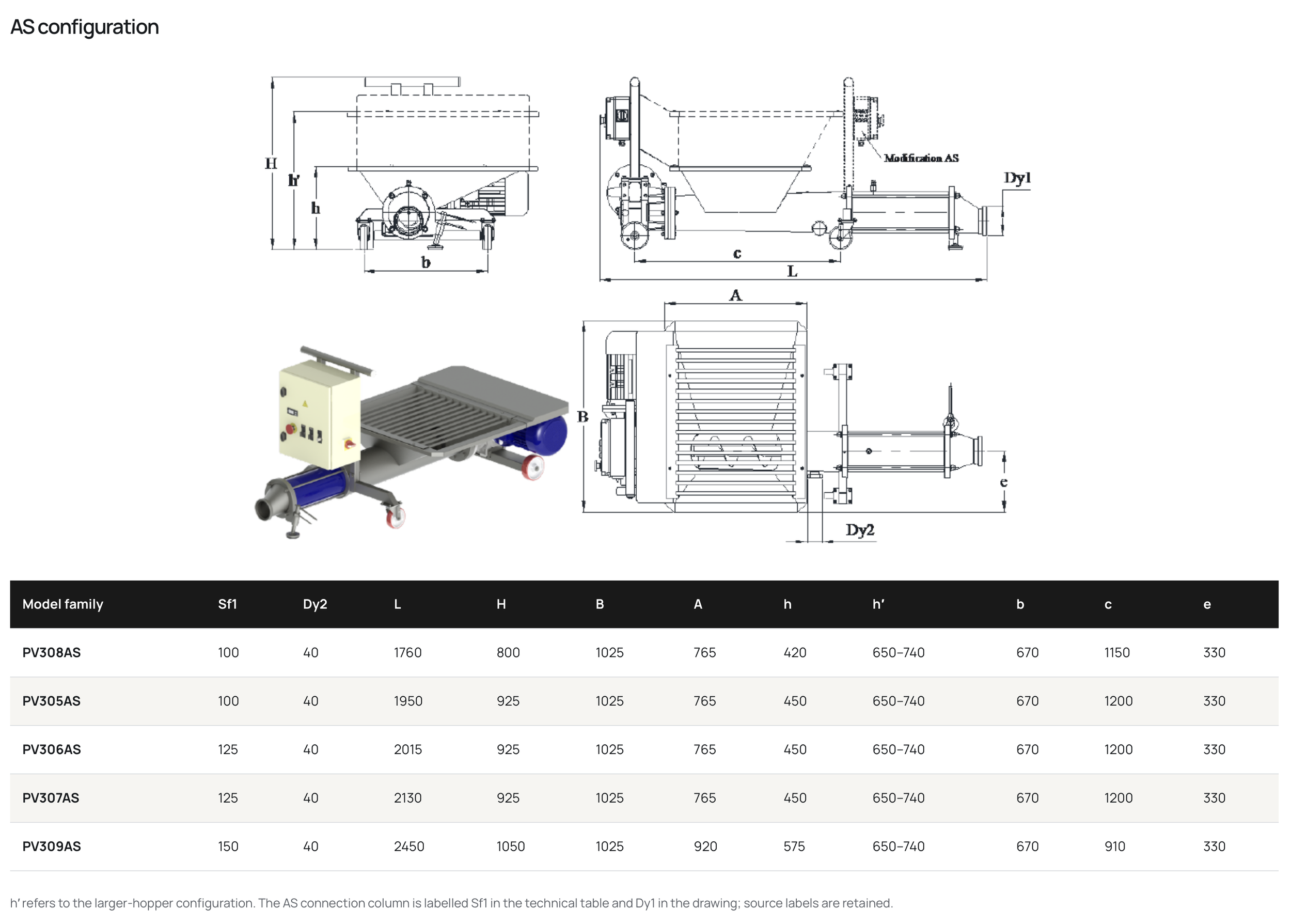

Increased hopper configuration, identified by h′ in the drawings.
Spherical female fittings
DN100 and DN120 options; select the connection to suit the installation.
