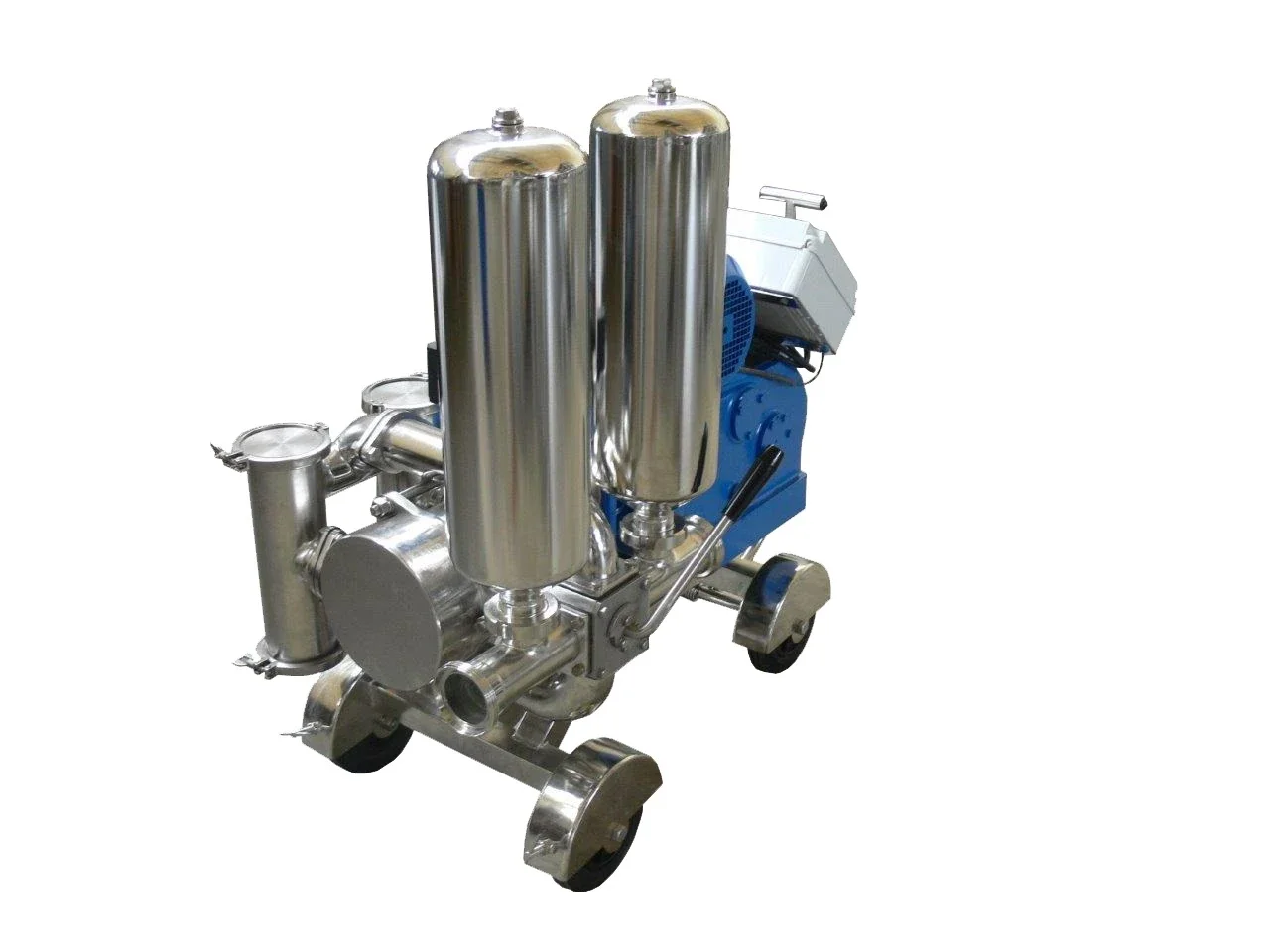

PB piston pump
Self-priming AISI 304 stainless steel piston pump for wine, must, destemmed grapes and other liquids.
Technical details.
Discuss specifications and the right configuration for your application with the Bev-Tech team.
AISI 304 stainless steel pump mounted on wheels with brakes.
Cast stainless steel pump body and stainless steel compensation chambers, with inlet/outlet piping and a flow-reversing valve.
Helical gearmotor drive.
A pressure switch protects against excessive pressure at the pump discharge.
The self-priming pump can draw product from a level below the pump itself.
Suitable for transferring wine, must, destemmed grapes, juice, oil, vinegar, alcohol and distillates.
CONSTRUCTION & CONTROL
Equipment and protection.
Stainless steel construction
AISI 304 / AISI 316L materials as specified in the technical sheet.
Self-priming operation
Listed suction lift: 7 m.
Overpressure protection
A pressure switch at the outlet automatically protects the pump against excessive discharge pressure.
Flow reversal
A manual valve reverses the direction of flow.
Electrical equipment
Supplied with an electrical control box and a 5 m cable.
Remote control
Remote control is available as an option.
Drive configuration to be confirmed: the technical sheet specifies two-speed control, while the model descriptions specify an inverter.
