PL flexible impeller pump
Reversible flexible rubber impeller pump for liquid and semi-solid food products.
Technical details.
Discuss specifications and the right configuration for your application with the Bev-Tech team.

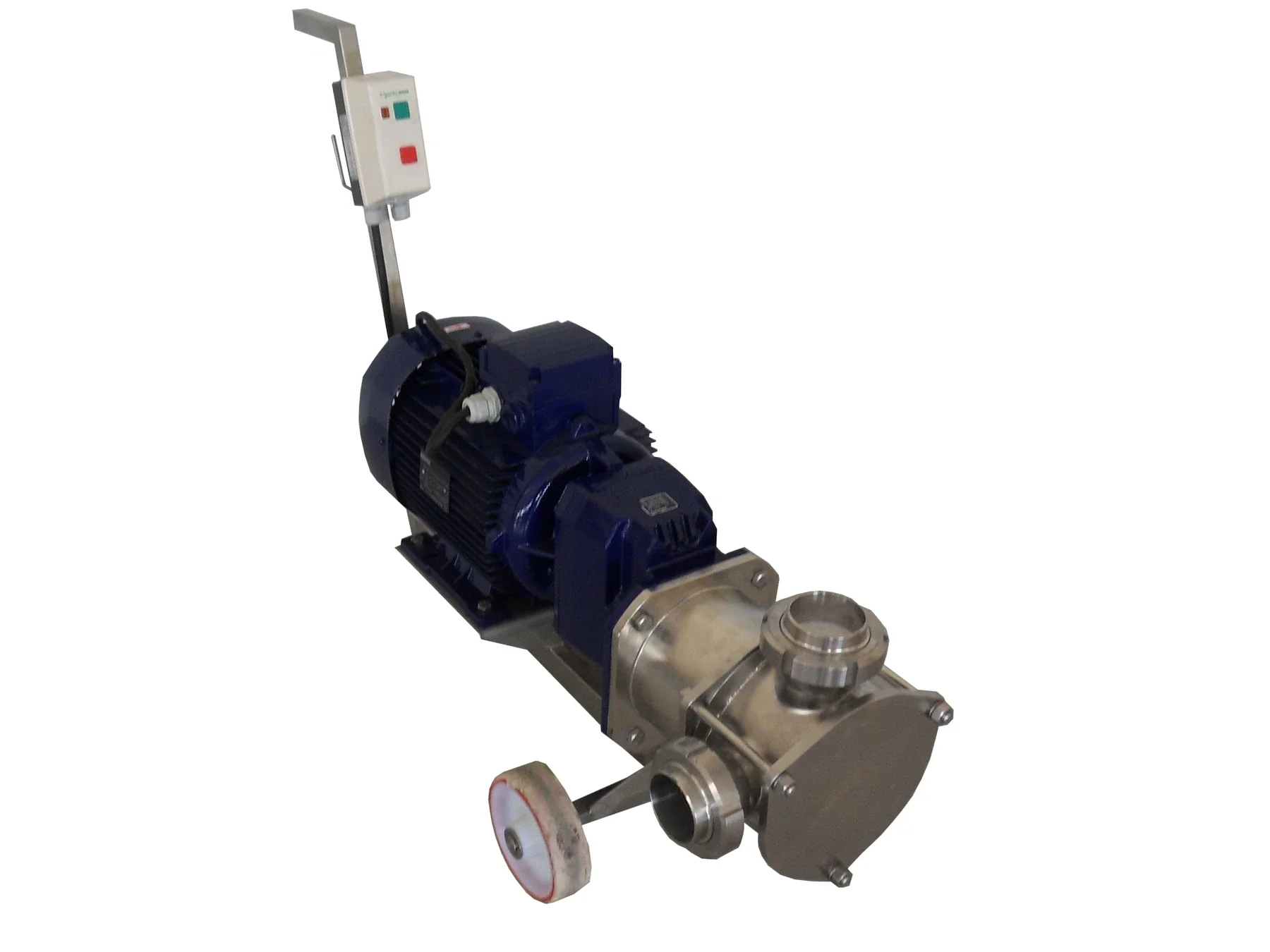

AISI 304 stainless steel pump supplied on a wheeled trolley.
The flexible rubber impeller operates in a specially designed pumping chamber that provides self-priming action and gentle product transfer.
Reversible operation with rotor speed depending on the model.
The self-priming pump can draw product from a level below the pump itself.

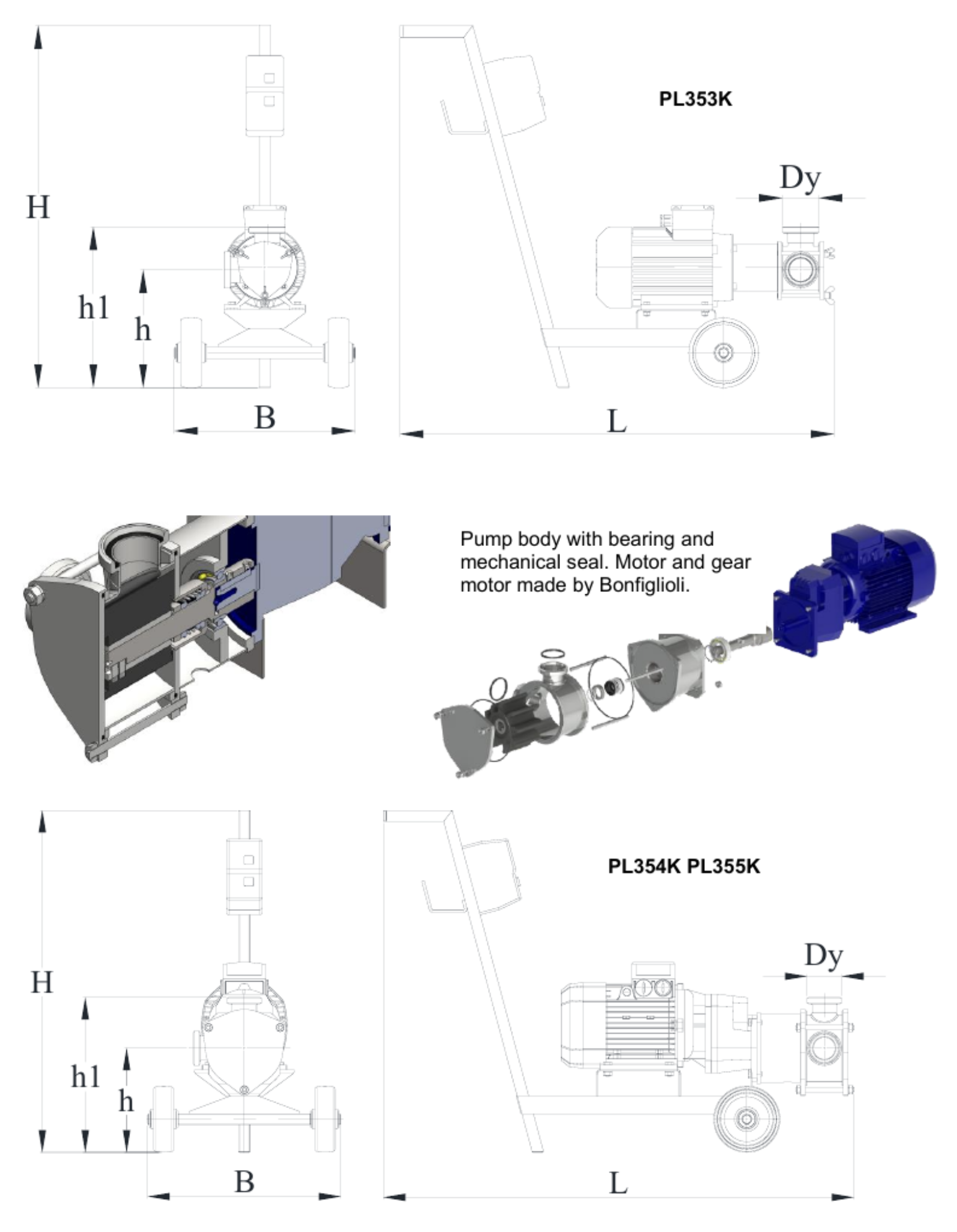

Support bearing and mechanical seal.
Motor drive with a mechanical gear reducer.
Suitable for transferring wine, must, destemmed grapes, beer, milk, juice, oil and vinegar.
STANDARD EQUIPMENT & OPTIONS
Configure the pump.
Standard equipment
Forward and reverse rotation, pump body with bearing and mechanical seal, and a 5 m electrical cable.
Electronic speed control

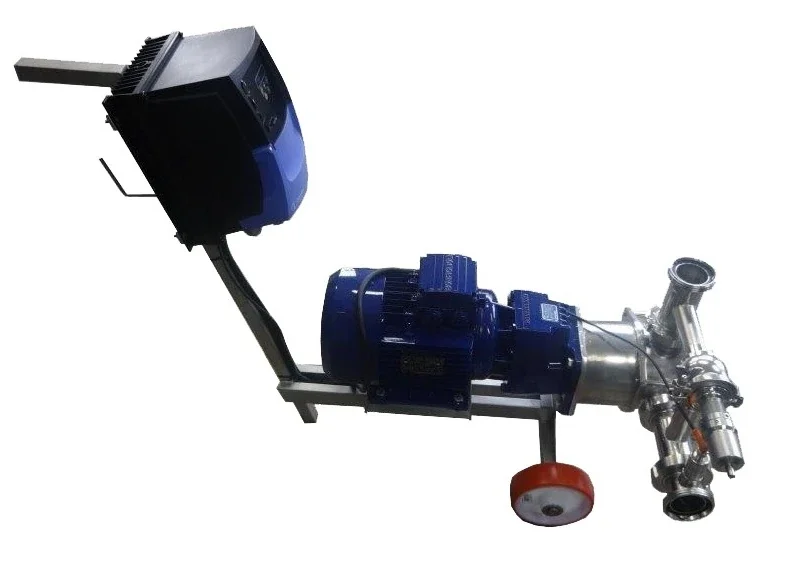

Optional IP66 inverter. A package with inverter and liquid absence detection probe is also available.
Adjustable bypass

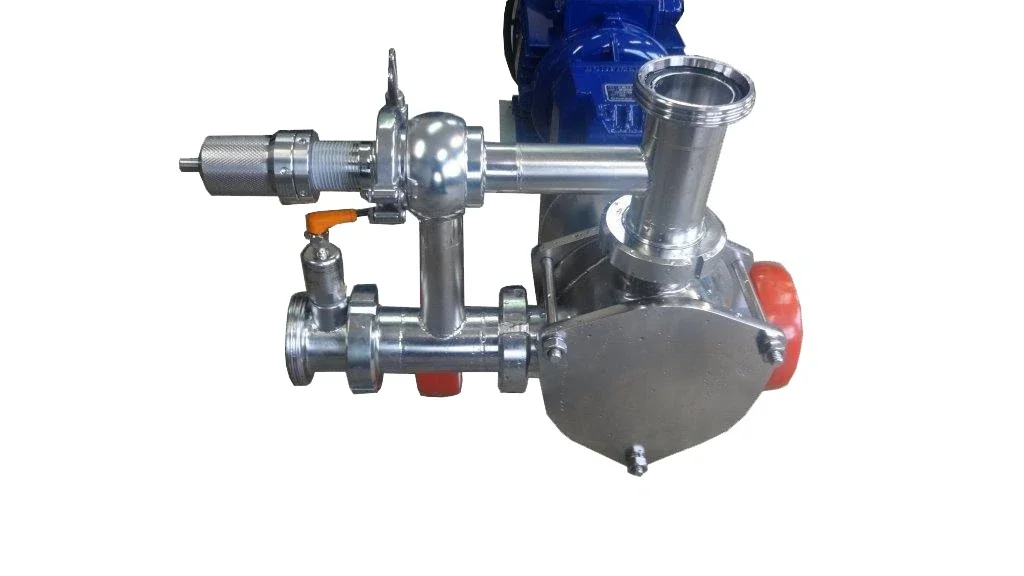

Optional bypass with an adjustable spring valve.
Remote control
Available on pumps equipped with an inverter.
PL356 rotor arrangement
Two rubber rotors, with an optional pipe for series connection.
